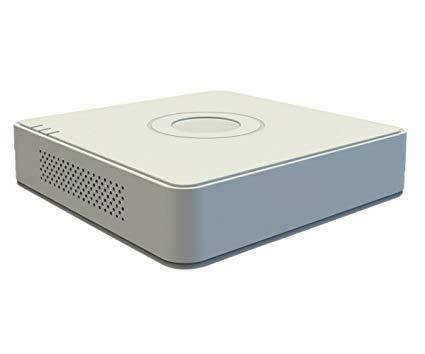

Hikvision HD Series DS-7A04HQHI-K1 1080P 4MP 4 Channel Mini Turbo DVR (White)

Video Input and Transmission Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input Up to 2-ch 4 MP IP cameras input Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal Compression and Recording H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Connectable to H.265+/H.265/H.264+/H.264 IP cameras H.265+ can be enabled to improve encoding efficiency and reduce data storage costs Up to 3 MP resolution for recording of channel 1 of DS-7A04HQHI-K1, channel 1/2 of DS-7A08HQHI-K1, and channel 1/2/3/4 of DS-7A16HQHI-K1 Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p Video Output Simultaneous HDMI/VGA output torage and PlaybackOne SATA interface (up to 6 TB capacity per HDD);4/8/16-ch synchronous playback;Smart search for efficient playback;Supports third-party cloud storage (Dropbox/Google Drive/Microsoft OneDrive) Smart FunctionVQD (Video Quality Diagnostics);Supports PTZ control via Omnicast VMS of Genetec protocol Network & Ethernet AccessHik-Connect & DDNS (Dynamic Domain Name System) for easy network management; One RJ45 10M/100M Ethernet network interface; Output bandwidth limit configurable Video/Audio input Video compressionH.265+/H.265/H.264+/H.264 Analog and HD-TVI video input4-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDTVI input3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60Note: The 3 MP signal input is only available for channel 1 of DS-7A04HQHI-K1, channel 1/2 ofDS-7A08HQHI-K1, and channel 1/2/3/4 of DS-7A16HQHI-K1. AHD input1080p25, 1080p30, 720p25, 720p30 HDCVI input1080p25, 1080p30, 720p25, 720p30 CVBS inputSupport IP video input1-chUp to 4 MP resolutionSupports H.265+/H.265/H.264+/H.264 IP cameras Audio compressionG.711u Audio input/Twoway audio input1-ch, RCA (2.0 Vp-p, 1 KΩ) Video/Audio output HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Encoding resolutionWhen 1080p Lite mode not enabled: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF;When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF Frame rateMain stream:When 1080p Lite mode not enabled:For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fpsFor 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled:3 MP@15fps1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)Sub-stream:WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) Video bit rate32 Kbps to 6 Mbps Audio output1-ch, RCA (Linear, 1 KΩ) Audio bit rate64 Kbps Dual streamSupport Stream typeVideo, Video & Audio Synchronous playback4-ch Network management Remote connections128 Network protocolsTCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, ONVIFONVIFiSCSI, UpnP™, HTTPS Hard disk SATA1 SATA interface CapacityUp to 4 TB capacity for each disk External interface Network interface1, RJ45 10M/100M self-adaptive Ethernet interface USB interfaceReal panel: 2 × USB 2.0
